biosignalsplux Hybrid-8

Description

Warning: This Kit DOESN'T Include any sensors.

 The new biosignalsplux flagship toolkit with 8 hybrid channels supporting multi-sensor data acquisition from digital (e.g. FNIRS) and analog sensors, Bluetooth & BLE streaming capabilities, data logging features, all software add-ons and other advanced features.

The biosignalsplux Hybrid-8 toolkit has been designed with your research in focus by enabling high-quality biosignal acquisition applications where the acquisition of sensor data from multiple analog and digital sensors is required. This kit comes with 8 analog sensors of your choice and can be extended by sensors of our growing portfolio of digital sensor solutions, providing a versatile and yet customizable sensor system for your current and future research applications.

Its new Hybrid Ports supports both analog and digital sensors and is the ideal solution for multi-FNIRS setups in which the acquisition of other biosignal data (e.g., ECG, EDA, EMG) is required. Synchronous data acquisitions are supported for up to 8 sensors simultaneously with analog sensors being sampled at up to 3kHz sampling rate and 16-bit resolution, and up to 24-bit sampling resolution for digital sensors.¹

In addition to its new Dual Bluetooth module, which supports standard Bluetooth communication (Windows, macOS, Linux and Android) and Bluetooth Low Energy (BLE) communication (iOS), its 32GB internal memory enables offline data acquisition even in out-of-the-lab setups where a reliable Bluetooth connection might either not be possible or preferred. We provide all the tools for reliable online, real-time data acquisition and offline acquisition setups on all major platforms including:

• OpenSignals (r)evolution (Windows, macOS & Linux)
• OpenSignals Mobile (Android)
• Cross-platform Application Programming Interfaces (APIs) (Windows, macOS, Linux, Android)
• [New] Swift API for biosignal app development on iOS (available late 2020)

This kit comes with all available OpenSignals (r)evolution software add-ons which provide you with both real-time and post-processing algorithms to extract important and meaningful information from your sensor data.

^{(1) Sampling frequencies and resolutions of digital sensors can be configurable or pre-defined for each sensor. Please check the digital sensor’s datasheet for detailed specifications.}

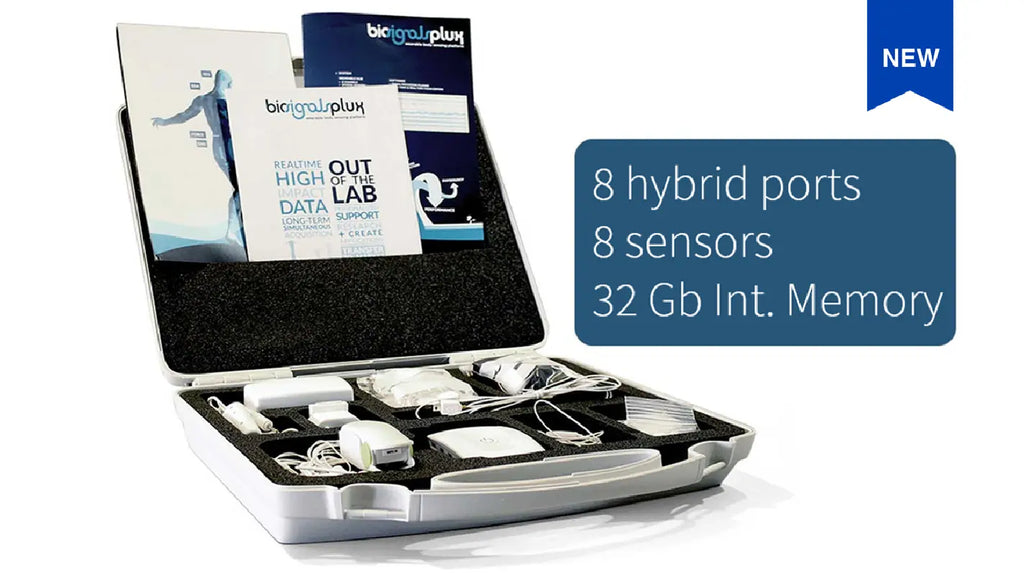

Kit Content

Hardware

• 1x Wireless 8-channel hub (specs below) with 32GB internal memory
• 8x Analog sensors of your choice (see the list on the right)
• 1x Bluetooth Dongle
• 1x Medical-grade charger
• 1x Pack of 50 pre-gelled & disposable electrodes
• 1x Portable & rugged storage case
• 16h Personalized technical support

Software

• OpenSignals (r)evolution (Windows, macOS, Linux)
• Heart Rate Variability (HRV)
• Electromyography (EMG) Analysis
• Electrodermal Activity (EDA) Analysis
• Respiration Analysis
• Video Synchronization
• Muscle Load Analysis
• OpenSignals Mobile (Android)
• Application Programming Interfaces (APIs) & Sample Code on GitHub

Specifications

• Sensor Ports: 8 hybrid ports compatible with both analog & digital sensors
• Auxiliary Ports: 1 ground + 1 accessory port
• Resolution: Up to 16-bit (per channel)
• Sampling Rate: Up to 3kHz (per channel)
• Internal Memory: 32GB
• Communication: Dual-Bluetooth with Bluetooth & Bluetooth Low Energy (BLE) support*
• Battery Life Time: up to 10h
• Size: 85x54x10mm
• Weight: 45g (without sensors)
• Color: White

^* BLE communication has been designed as an iOS exclusive
