Electroencephalography (EEG) Sensor

biosignalspluxSKU: 820201204
filler

Price:
Sale price€120,00

Description

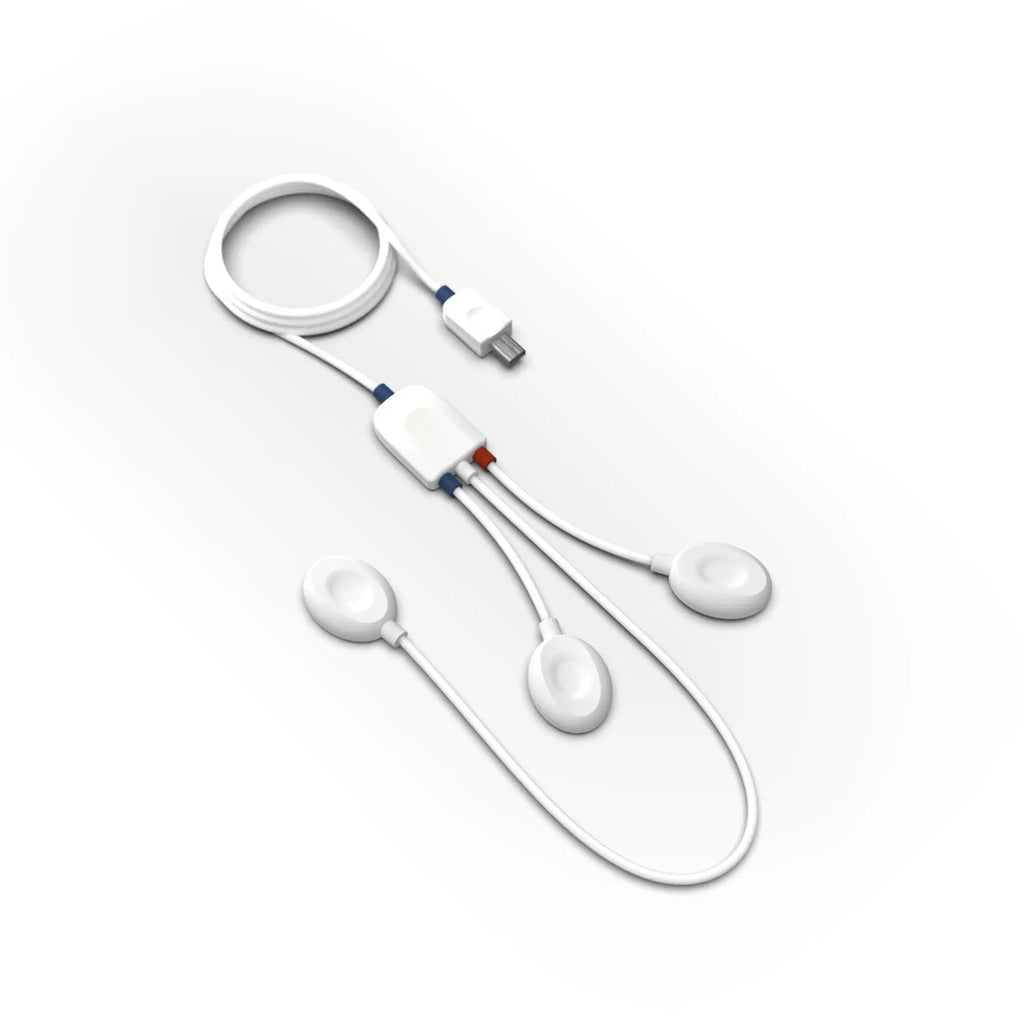

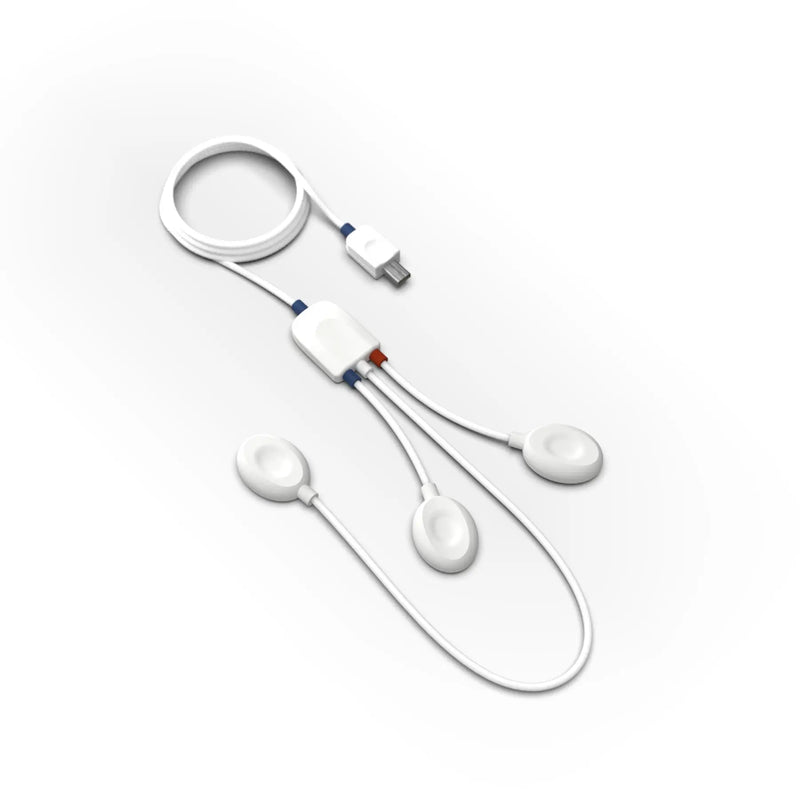

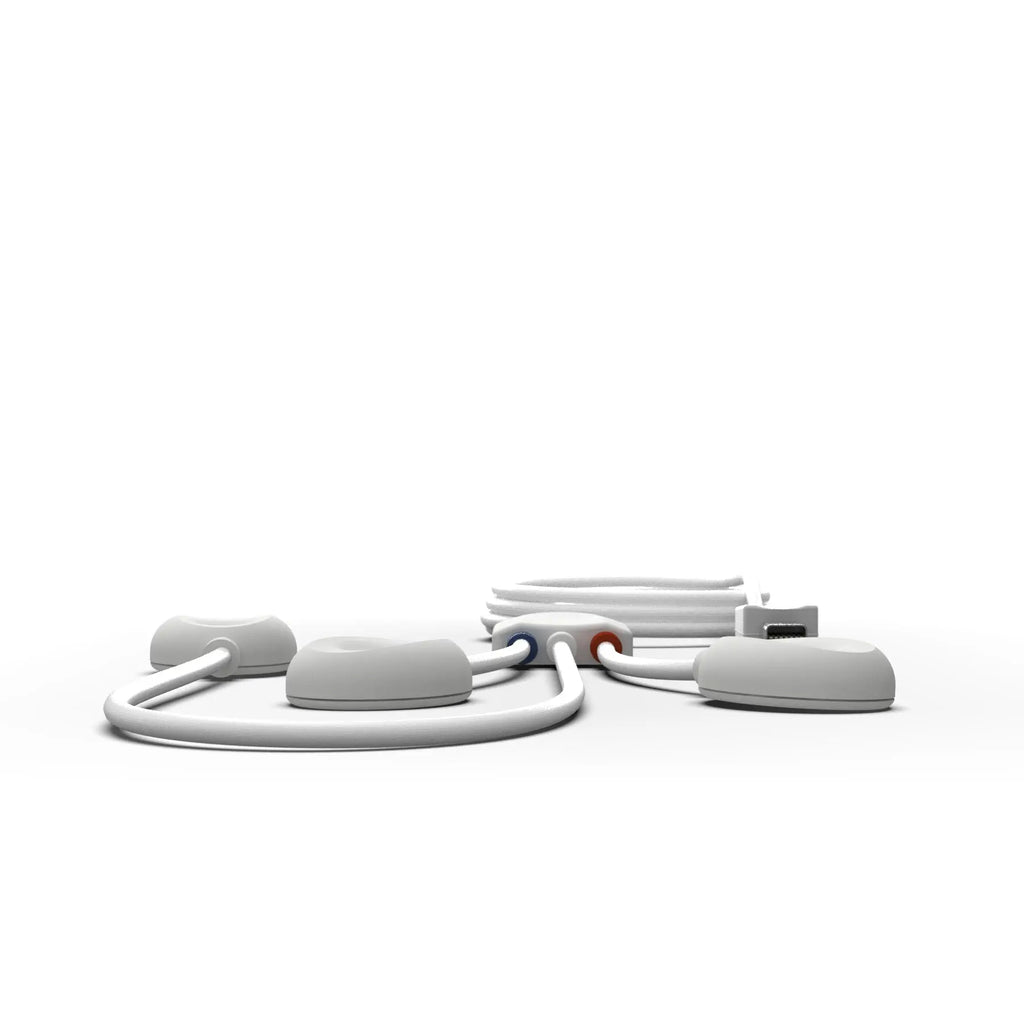

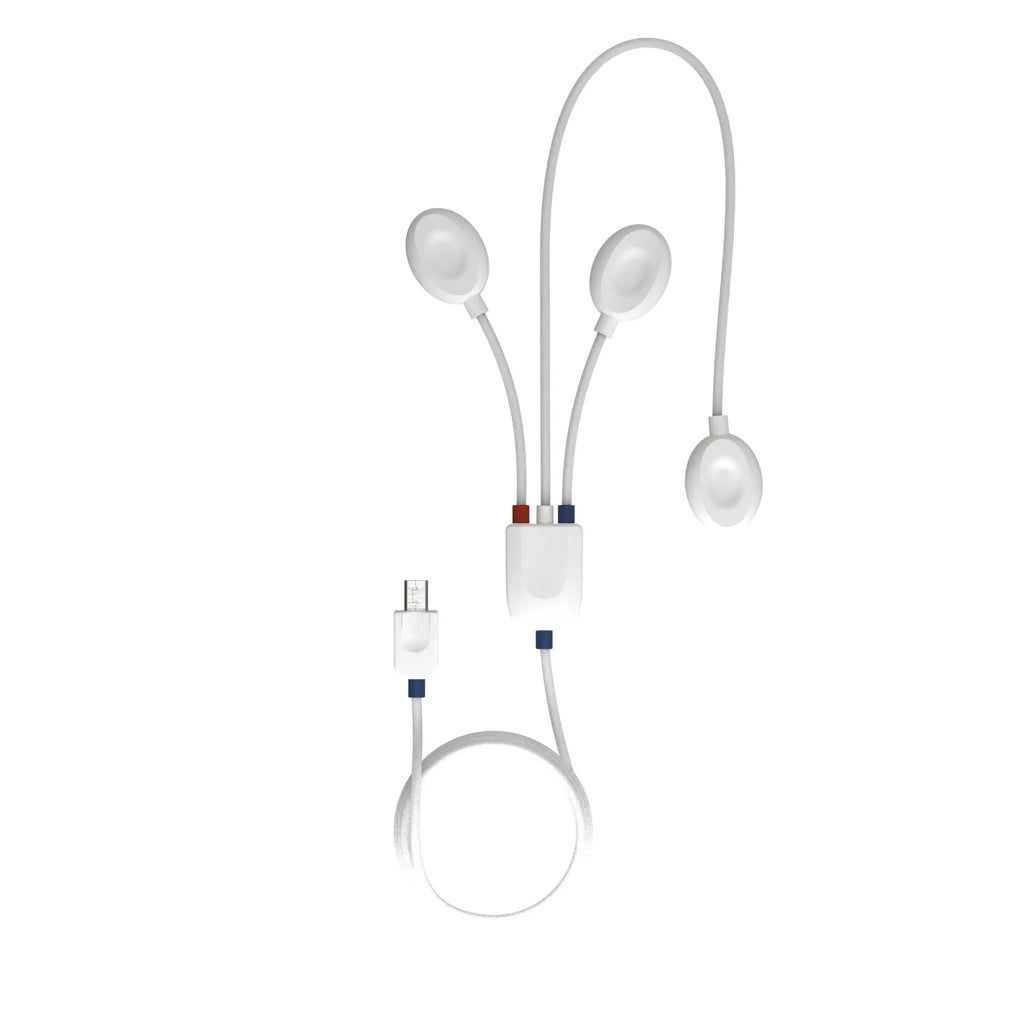

The biosignalsplux Electroencephalography (EEG) sensor has been specifically designed with both classic and localized EEG measurement applications in mind. This single-lead EEG sensor is ideal for experimental setups for which an EEG cap is too intrusive, only a limited number of EEG channels are needed, or when multiple sensor types are being used in combination with localized EEG monitoring.

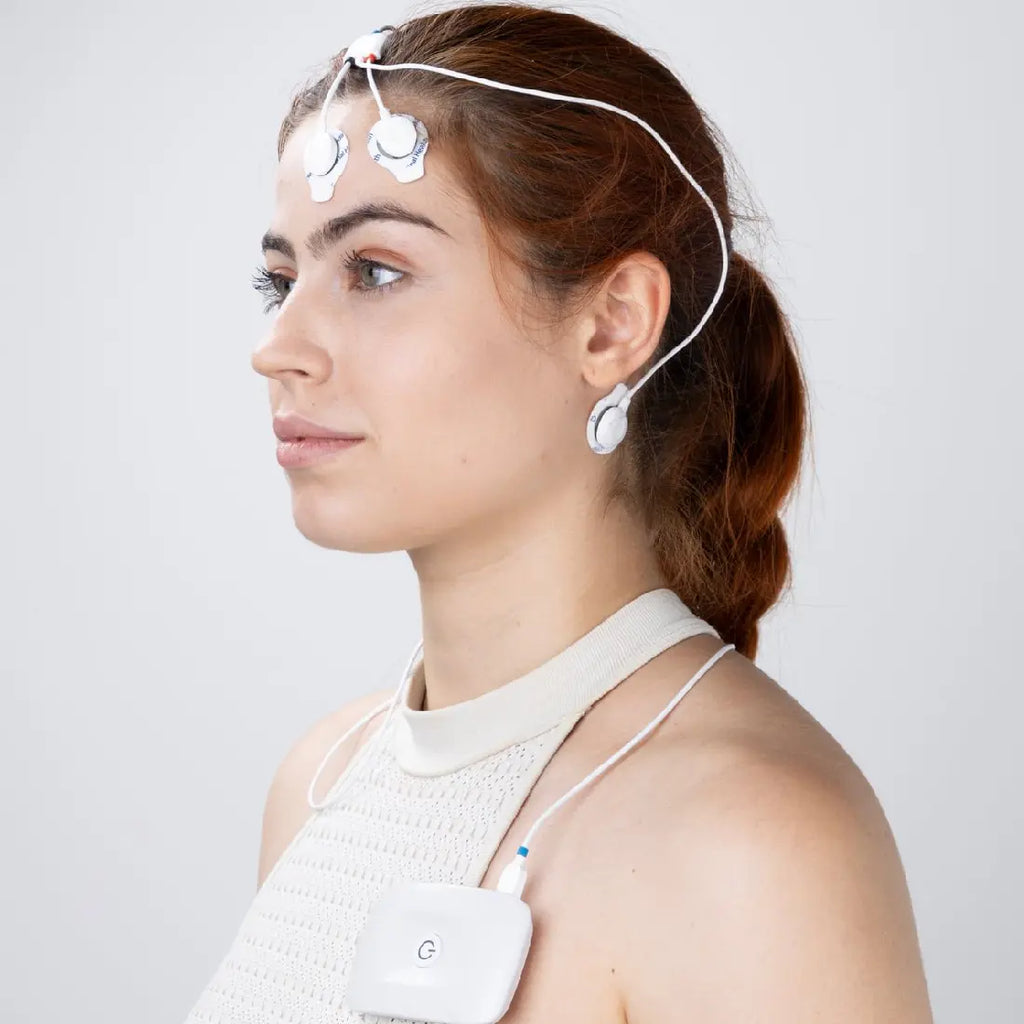

The bipolar configuration, with two measurement electrodes, detects the electrical potentials in the specific scalp region and is used in combination with a reference electrode, placed at a region of low muscular activity. The resulting signal is the amplified difference between these two signals and the result of the brain’s electrical activity in the monitored scalp region.

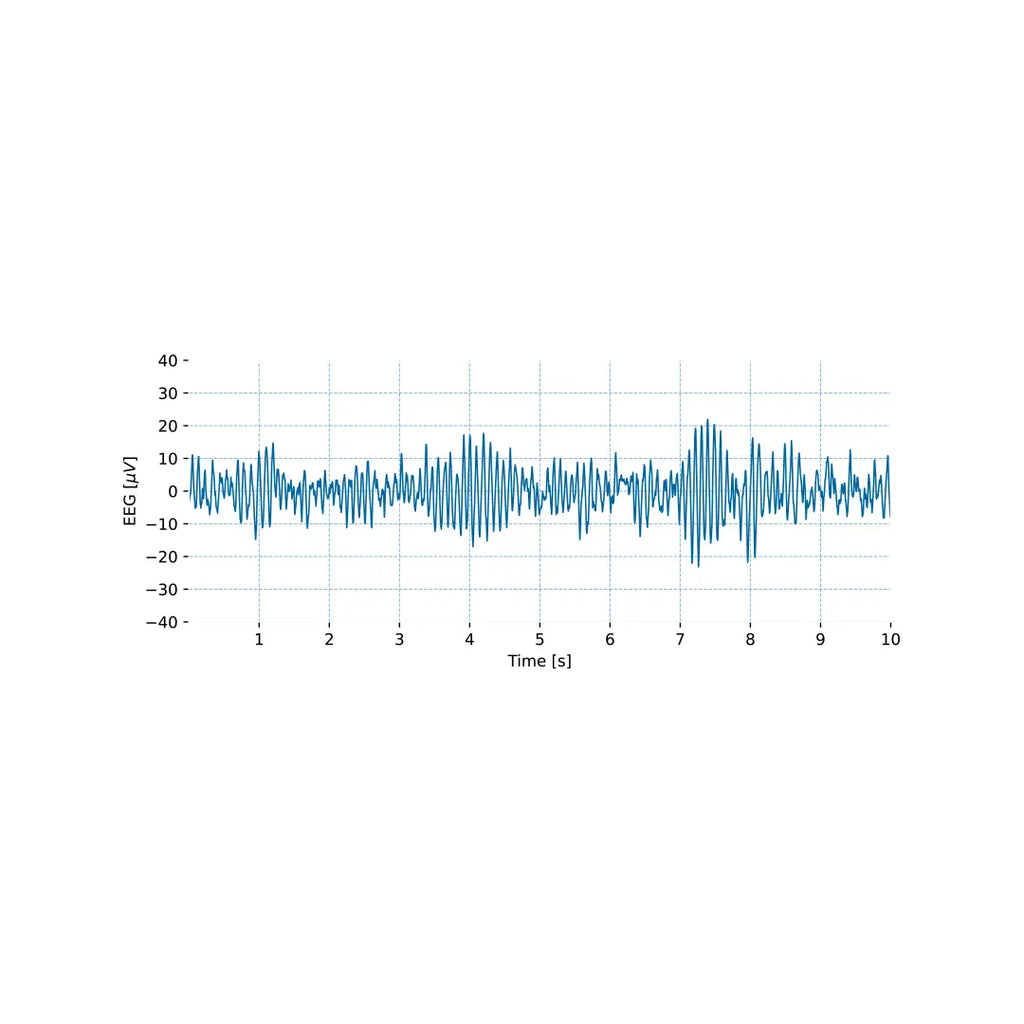

This sensor enables non-invasive, unobtrusive, and localized EEG monitoring, which, for example, can be used to track changes in cerebral activity as a result of visual or auditory stimuli.



Note: This sensor comes with our Headband for EEG to help keep the sensor in place during the acquisition.

Features

  • Single-channel bipolar sensor
  • Pre-conditioned analog output
  • High signal-to-noise ratio
  • Medical-grade raw data output
  • Ready-to-use
  • Miniaturized form-factor

Specifications

  • Gain: 47.780
  • Range: ±37.5μV (with VCC=3V)
  • Bandwidth: 0.80-48.23Hz
  • Input Impedance: >100GOhm
  • CMRR: 100dB
  • Cable Length: 100cm±0.5cm (customizable; extra costs may apply)

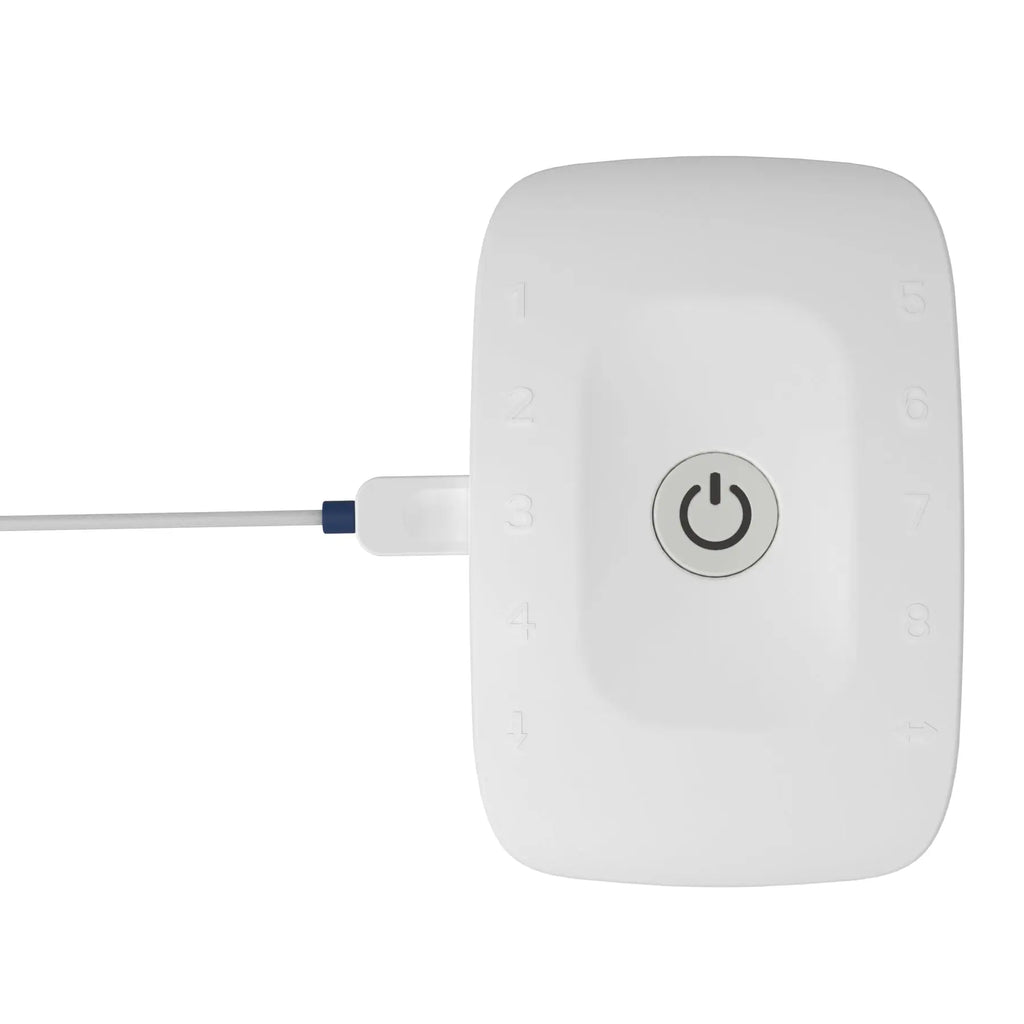

  • Connector Type: UC-E6 (male; must be connected to a biosignalsplux acquisition unit)
Compatibility:
  • This sensor is only compatible with biosignalsplux acquisition system
